3:1 Heat Shrink Ratio with glue liner insert double Wall (available diameter size)





Diameter:25.4mm After Shrinking:8.5mm



Diameter:19.1mm After Shrinking:6.4mm



Diameter:12.7mm After Shrinking:4.2mm



Diameter:9.5mm After Shrinking:3.2mm



Diameter:6.4mm After Shrinking:2.2mm





Material:Polyolefin





Minimum Shrinkage Temp:+70°C





Full Shrinkage Temp:+110°C maximum





Operating Temperature:-55°C to +125°C





Tensile strength:10.4 Mpa





Dielectric strength:15 kV/mm





Manufacture specification:ISO9001





Flammability:Flame Retardant





Approvals:UL Approved





Supplied format (round or flat):Product is supplied flat





Cutting method:Scissors or sharp knife





Heat shrinkable tube has excellent un-flammability, flexibility, and insulation. The shrinking temperature is very low and it can shrink very quickly. It is suitable for various electric insulation and bonding of cables and connectors and widely applied for connecting or end-handling, electric wire, insulating and harness of electric wire, corrosion-proof of metallic rods or tubes, and antenna.

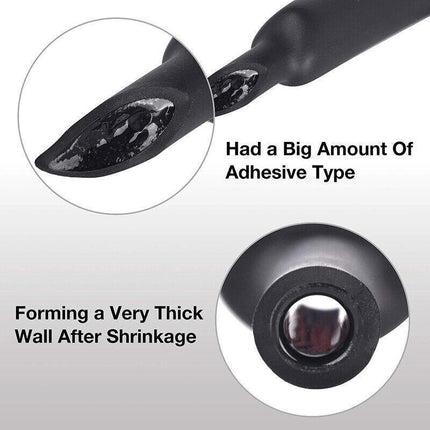

Double wall heat shrink tube is thick layer of quality insulation, it provides excellent property of both insulation and sealing, it is best used when corrosion protection,resist to destroy, abrasion resistant and long lasting sealing are required.





NOTE


1. As different computers display colors differently, the color of the actual item may vary slightly from the above images.



2. Please allow 1-3 CM differs due to manual measurement.



Grade Marine Heat Shrink Tubing 3:1 Wire Sleeve Glue Inside Fast Wrap Insulation Red 3M

Product form

$23.99 $10.05

Free pickup in our shop(s)

Earn AimallPoints! (100 AimallPoints Equal $1) 1,00 AimallPoints = AUD $1
e.g. (Your AimallPoints) X 0.010 = AUD$ Value

* AimallPoints can be redeemed (on your account page) and applied to your next purchase.

18 in stock

    • Guaranteed secure & safe checkout.

      paypal
    Place an order , earn points!Place an order , earn points!

    At Aimall, shopping gets you more! With our AimallPoints loyalty program, you earn points every time you shop. The more points you earn, the bigger your discount on your next purchase.

    Simply log in and shop—no need to sign up for anything extra. Points will be added to your account automatically after each purchase. You can save your points for up to two years and use them on any product.

    Learn More

    Free Shipping over $29Free Shipping over $29

    Free Standard Shipping over $29 within Australia (excl. bulky items*).

    Standard Shipping Within Australia- Flat Rate $6 below $29

    Express shipping within Australia (excl. bulky items*) - Flat rate of $10 for orders below $29 and $13 for order over $29

    Most products are shipped by Australia Post, Sendle, PFL Logistics, and Courier Please.

    Return & ExchangeReturn & Exchange

    For products you are not satisfied with, we have a 30-day return and exchange policy. This means you
    have 30 days from receiving your item to request a return or exchange. Once we have received and examined your return, we will notify you and let you know whether to approve a refund or an exchange. lf you opt for a refund, you can then re-purchase the new product to make sure you get what you want. lf you choose an exchange, we will process it and send you the new product as soon as possible.

    Handling TimeHandling Time

    Standard delivery usually takes 2-6 business days depending on your parcel destination (8
    10 business days for western states and remote areas).
    Depending on your parcel destination, express delivery usually takes 1 - 5 business days.
    Please expect delays on holidays or during high-volume seasons.

    Description

    Details


    3:1 Heat Shrink Ratio with glue liner insert double Wall (available diameter size)





    Diameter:25.4mm After Shrinking:8.5mm



    Diameter:19.1mm After Shrinking:6.4mm



    Diameter:12.7mm After Shrinking:4.2mm



    Diameter:9.5mm After Shrinking:3.2mm



    Diameter:6.4mm After Shrinking:2.2mm





    Material:Polyolefin





    Minimum Shrinkage Temp:+70°C





    Full Shrinkage Temp:+110°C maximum





    Operating Temperature:-55°C to +125°C





    Tensile strength:10.4 Mpa





    Dielectric strength:15 kV/mm





    Manufacture specification:ISO9001





    Flammability:Flame Retardant





    Approvals:UL Approved





    Supplied format (round or flat):Product is supplied flat





    Cutting method:Scissors or sharp knife





    Heat shrinkable tube has excellent un-flammability, flexibility, and insulation. The shrinking temperature is very low and it can shrink very quickly. It is suitable for various electric insulation and bonding of cables and connectors and widely applied for connecting or end-handling, electric wire, insulating and harness of electric wire, corrosion-proof of metallic rods or tubes, and antenna.





    Double wall heat shrink tube is thick layer of quality insulation, it provides excellent property of both insulation and sealing, it is best used when corrosion protection,resist to destroy, abrasion resistant and long lasting sealing are required.





    NOTE


    1. As different computers display colors differently, the color of the actual item may vary slightly from the above images.



    2. Please allow 1-3 CM differs due to manual measurement.
