Description

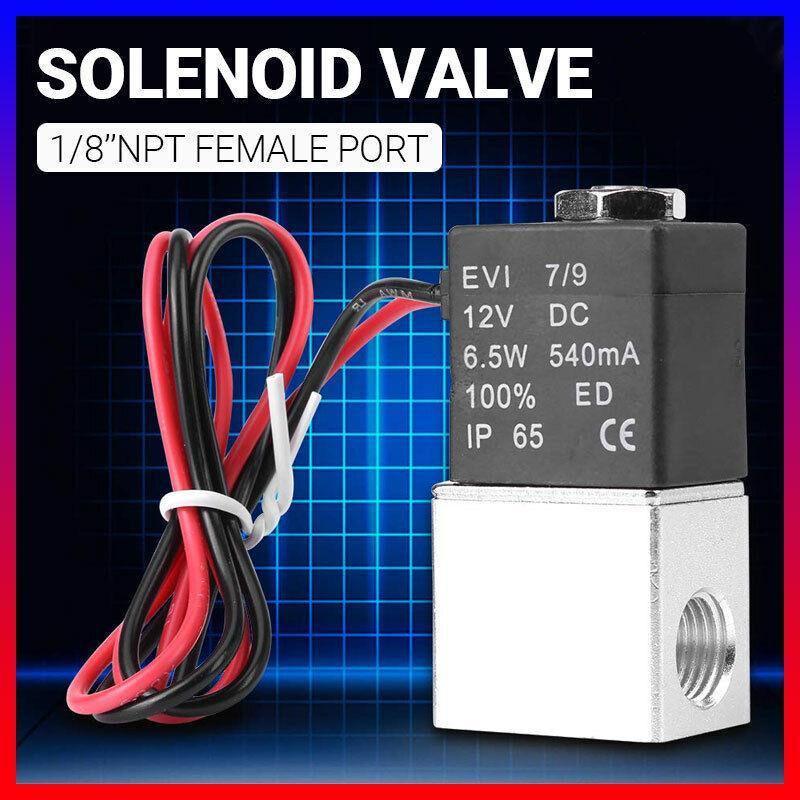

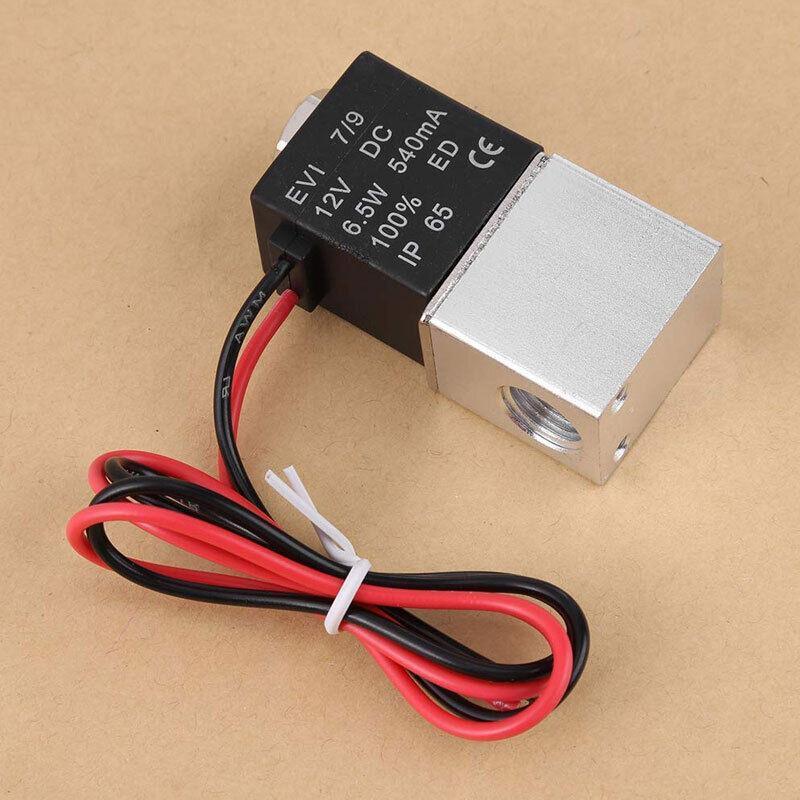

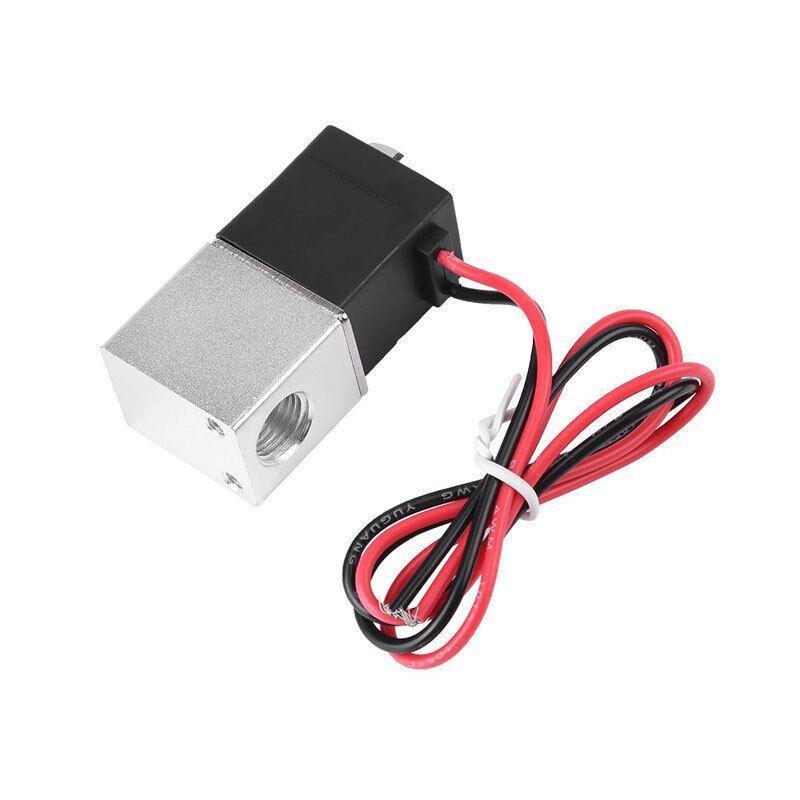

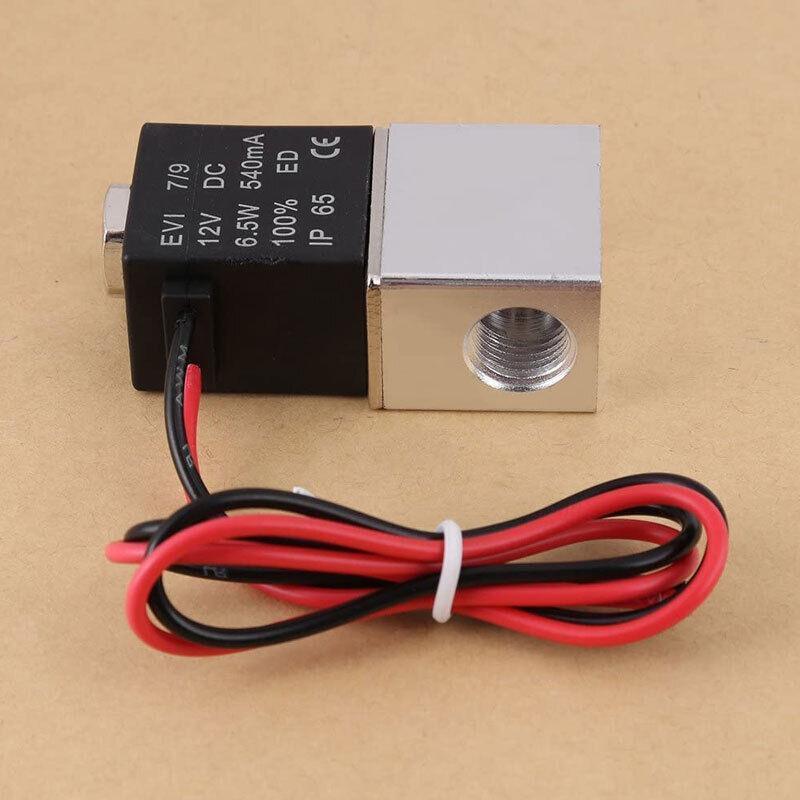

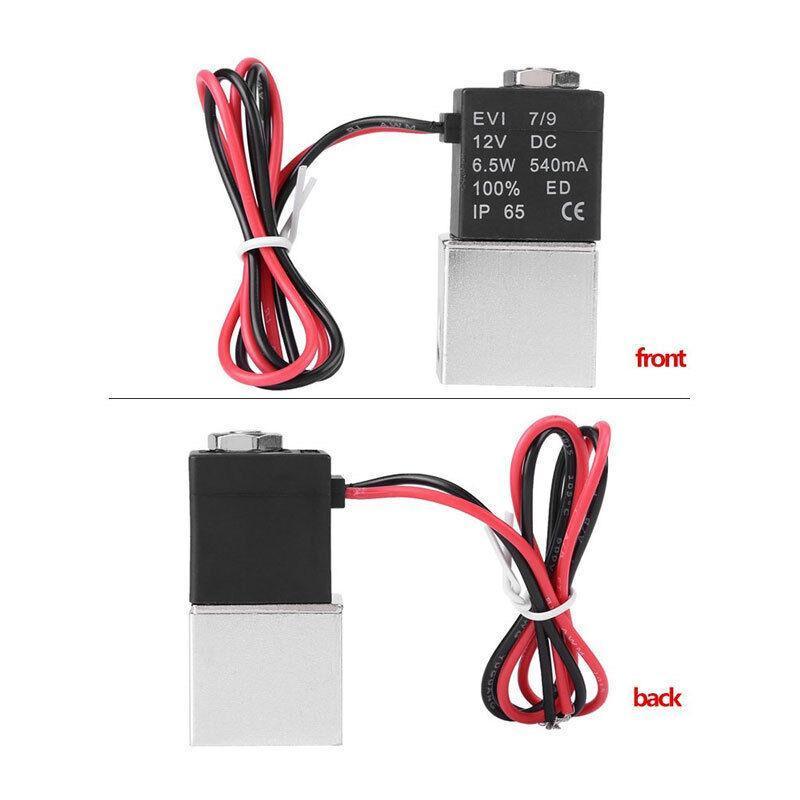

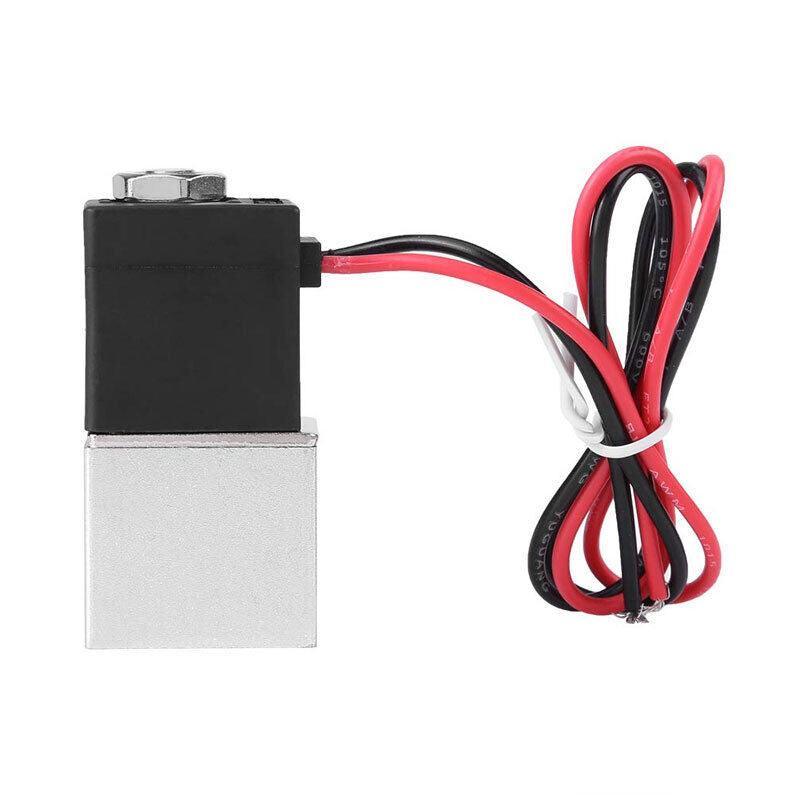

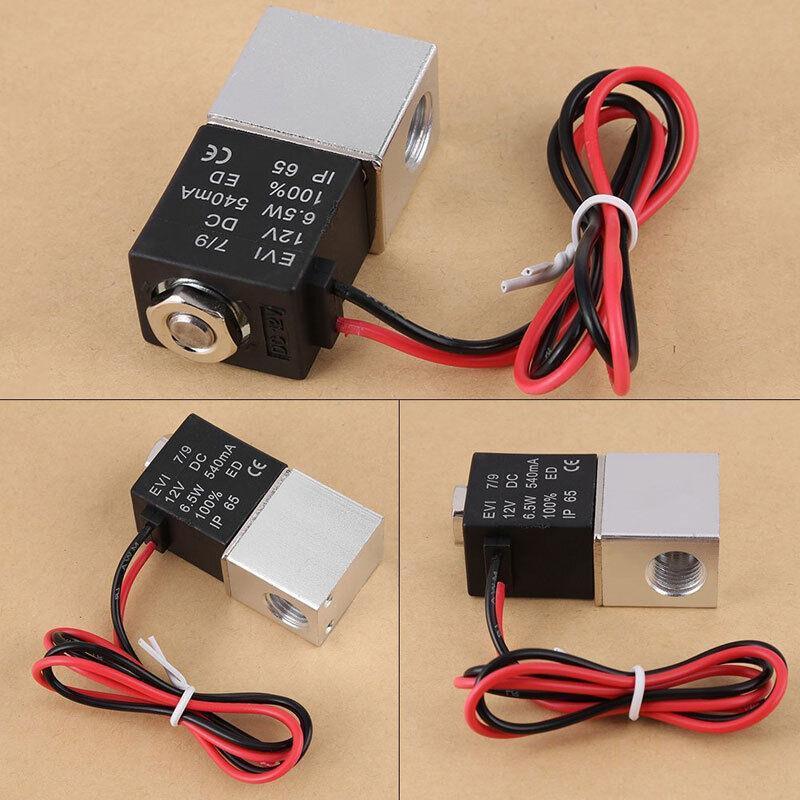

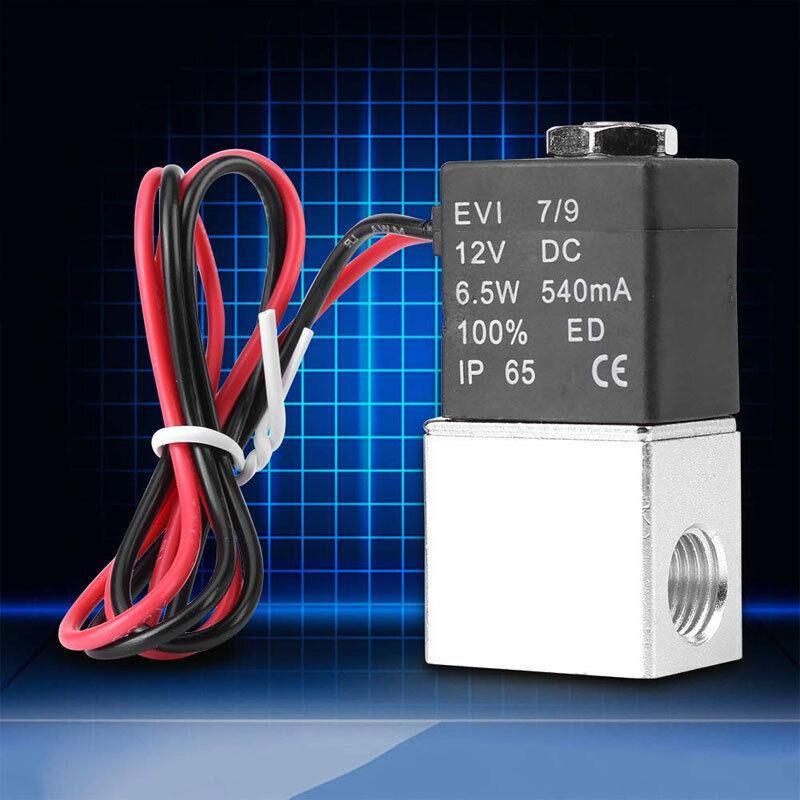

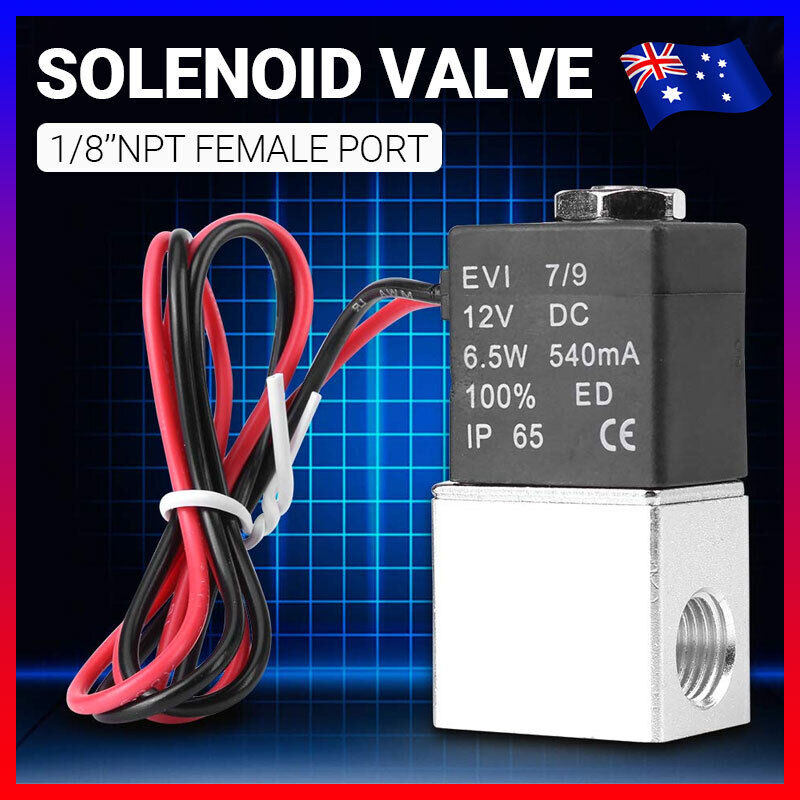

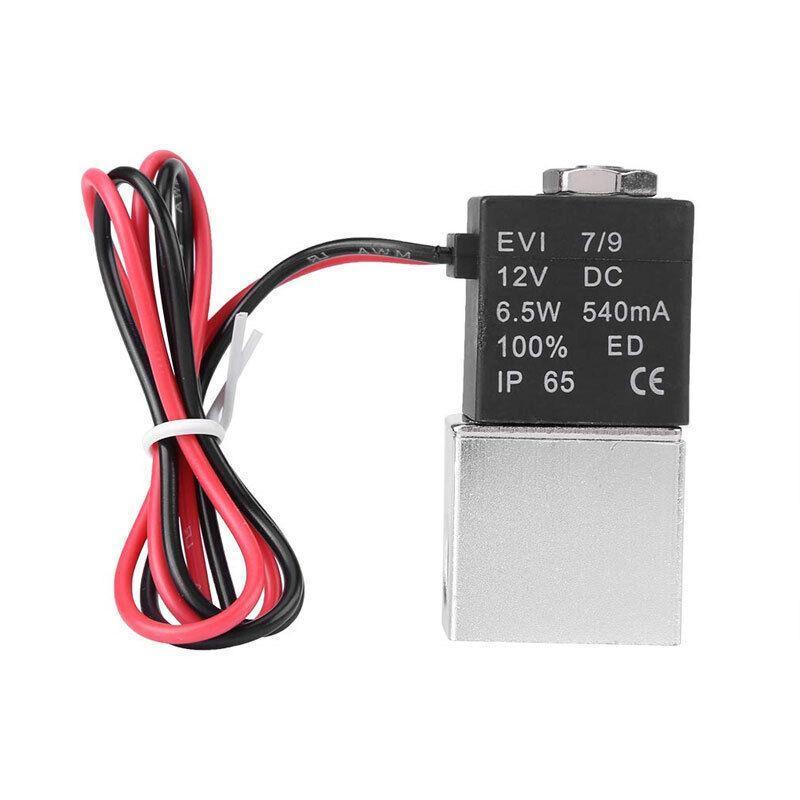

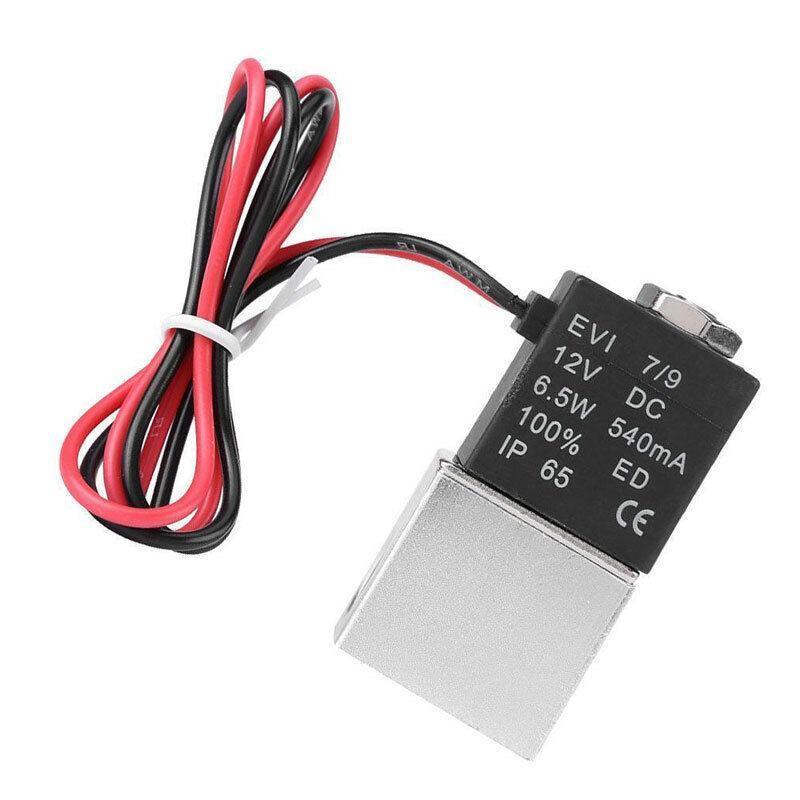

Introducing the 2CK series solenoid valve, a pivotal component for precise fluid control in a variety of applications. When unenergized, the valve remains in its closed state, only opening once the coil is powered. A true testament to engineering, this valve can operate even under vacuum conditions. Its design allows for versatile installation, and with an ED 100% sealing coil, the 2ACK series ensures continuous performance for extended operations.

Features:

  • Flexibility in Mounting: With dual holes at its base, the solenoid valve offers installation versatility.
  • Continuous Operation: The 2ACK series boasts an ED 100% sealing coil, ideal for persistent usage without power interruptions.
  • Zero-Differential Operation: The 2CK series valve, a zero-differential solenoid valve, functions seamlessly even under 0 psi.

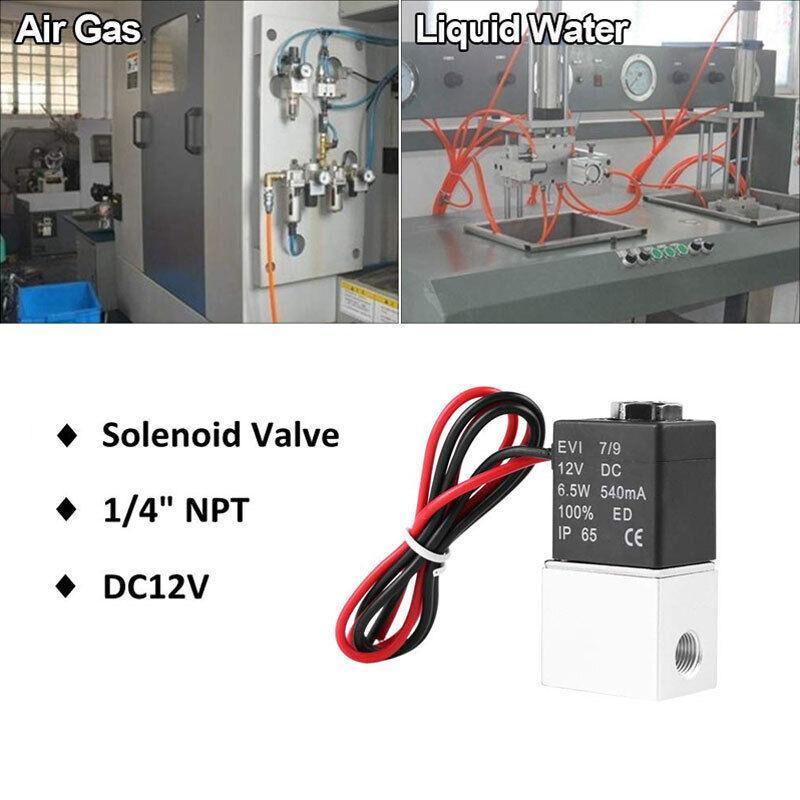

  • Broad Applications: From industries to construction, this valve integrates seamlessly into multiple pipeline systems.

Specifications:

  • Working Medium: Air, water, and oil.
  • Action Mode: Direct motion.
  • Valve Type: Normally closed.
  • Flow Aperture: 2.5.
  • CV Value: 0.23.
  • Nozzle Caliber: G1/8".
  • Rated Voltage: DC12V.
  • Fluid Viscosity: Below 20 CST.
  • Operating Pressure: 0-1.0 MPa for air, water, and oil.
  • Max. Pressure Resistance: 1.2 MPa.
  • Operational Temperature Range: -10°C to +80°C.
  • Voltage Range: ±10%.
  • Protection Level: IP65.
  • Power Consumption: AC: 7VA/60Hz.
  • Insulation: Class F.
  • Seal Material: NBR or VITON.
  • Minimum Excitation Time: 0.05 seconds.
  • Dimensions: 653222mm (2.561.260.87").

Package Includes:

  • 1 x 2CK Series Solenoid Valve.

Notes:

  • The actual color may slightly differ from the photo due to lighting conditions and display settings.
  • Manual measurements may introduce a slight size deviation.
