Description

This complete wiring harness and CDI ignition system kit is designed as a replacement electrical assembly for 50–110cc 4-stroke off-road motorcycles, ATVs, and dune buggies (non-GY6 engines).

The kit includes essential ignition and electrical components required for standard system repair or replacement. Colour-coded wiring helps simplify installation and reduce connection errors. Built with durable insulation and copper terminals, the harness is designed for reliable operation in typical off-road conditions.

Suitable for maintenance, repair, or restoration of compatible small-capacity engines.

Features

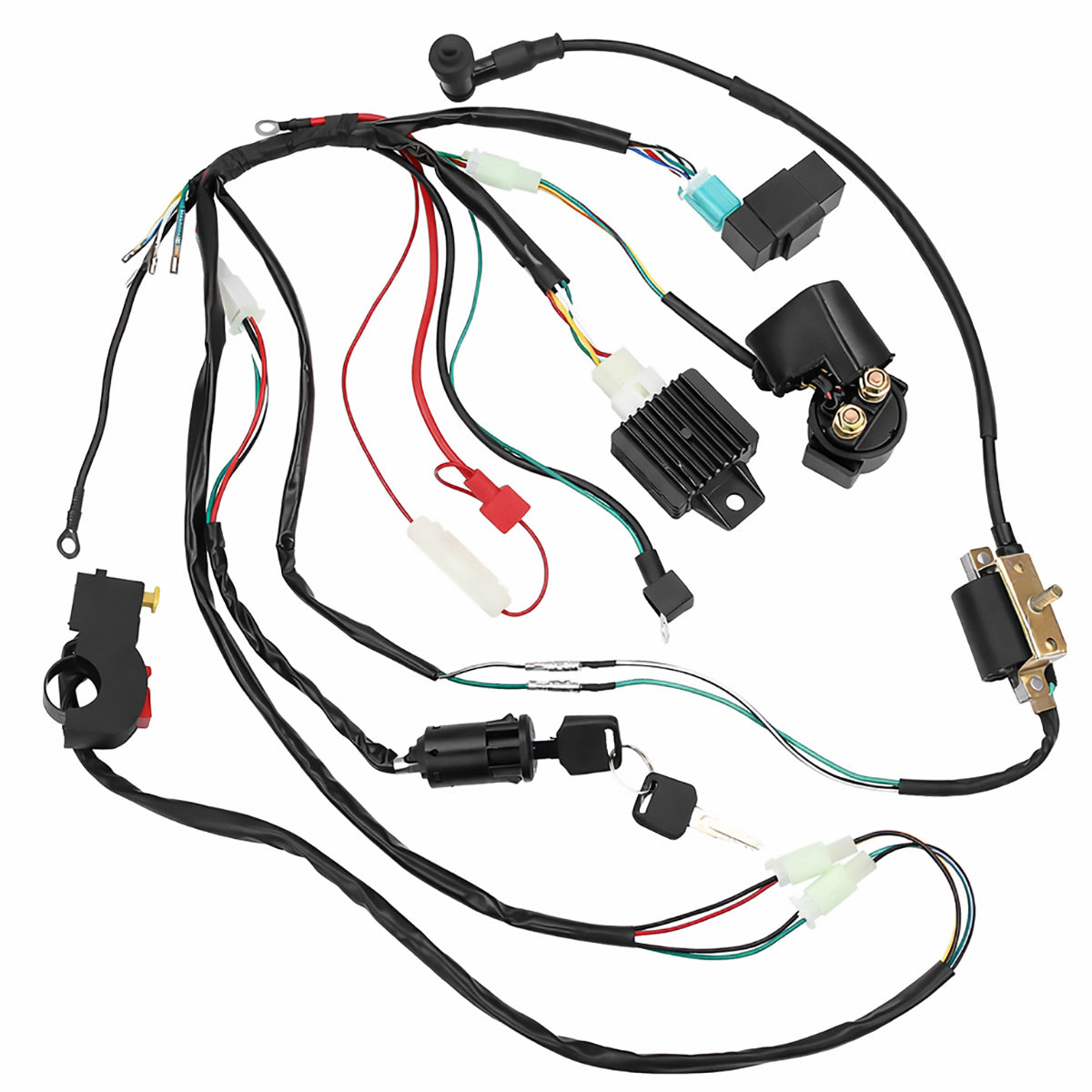

  • Complete ignition and wiring harness kit for 50–110cc 4-stroke models

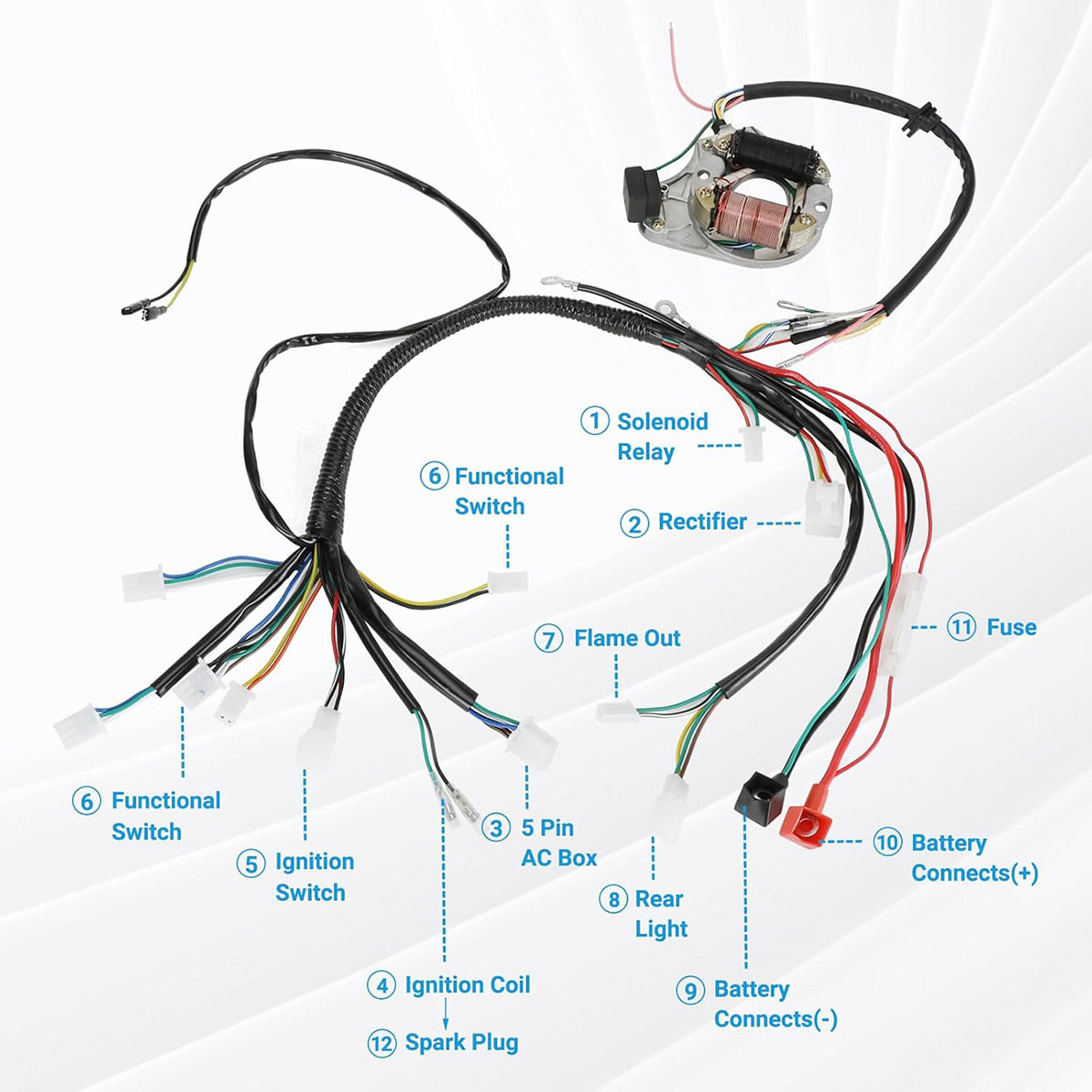

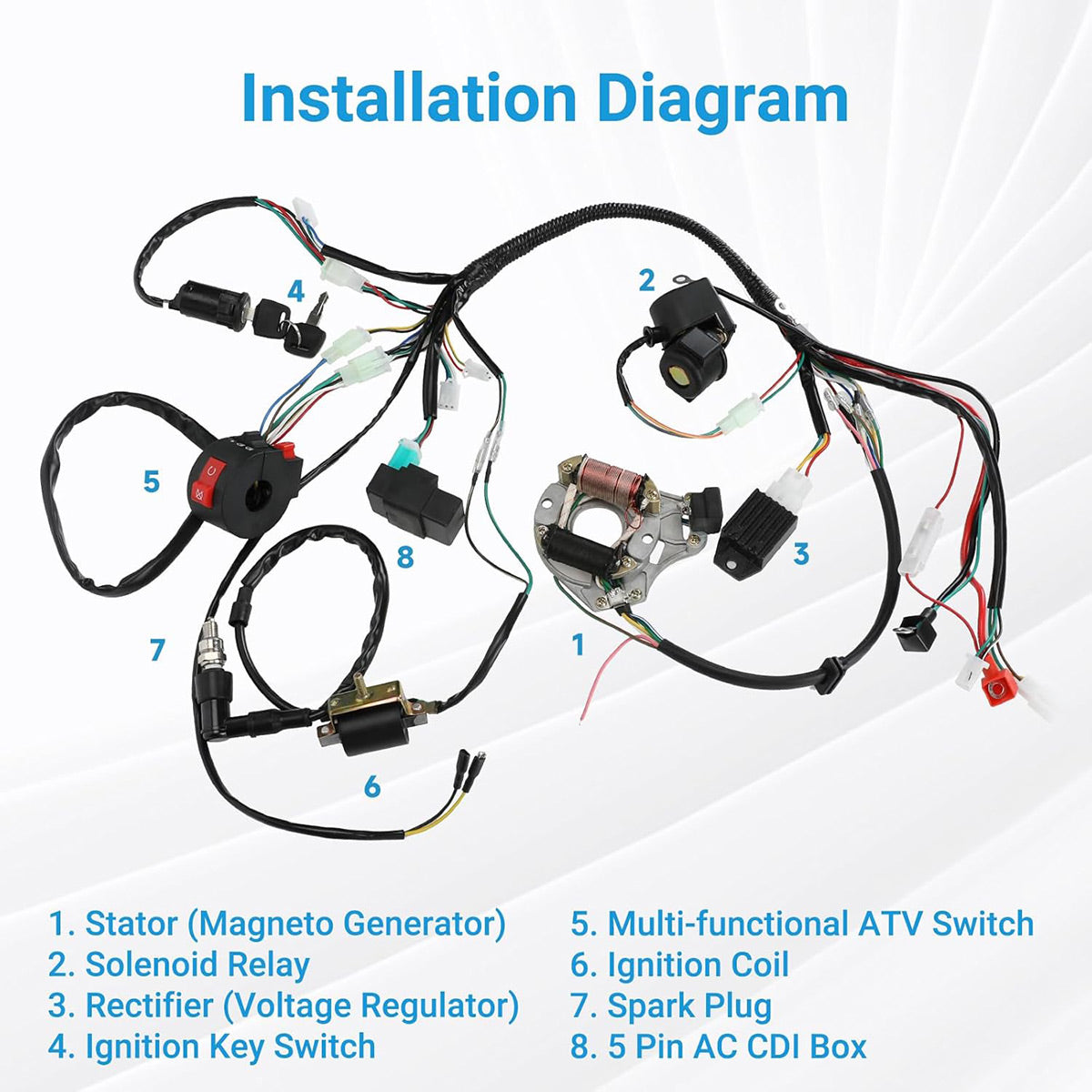

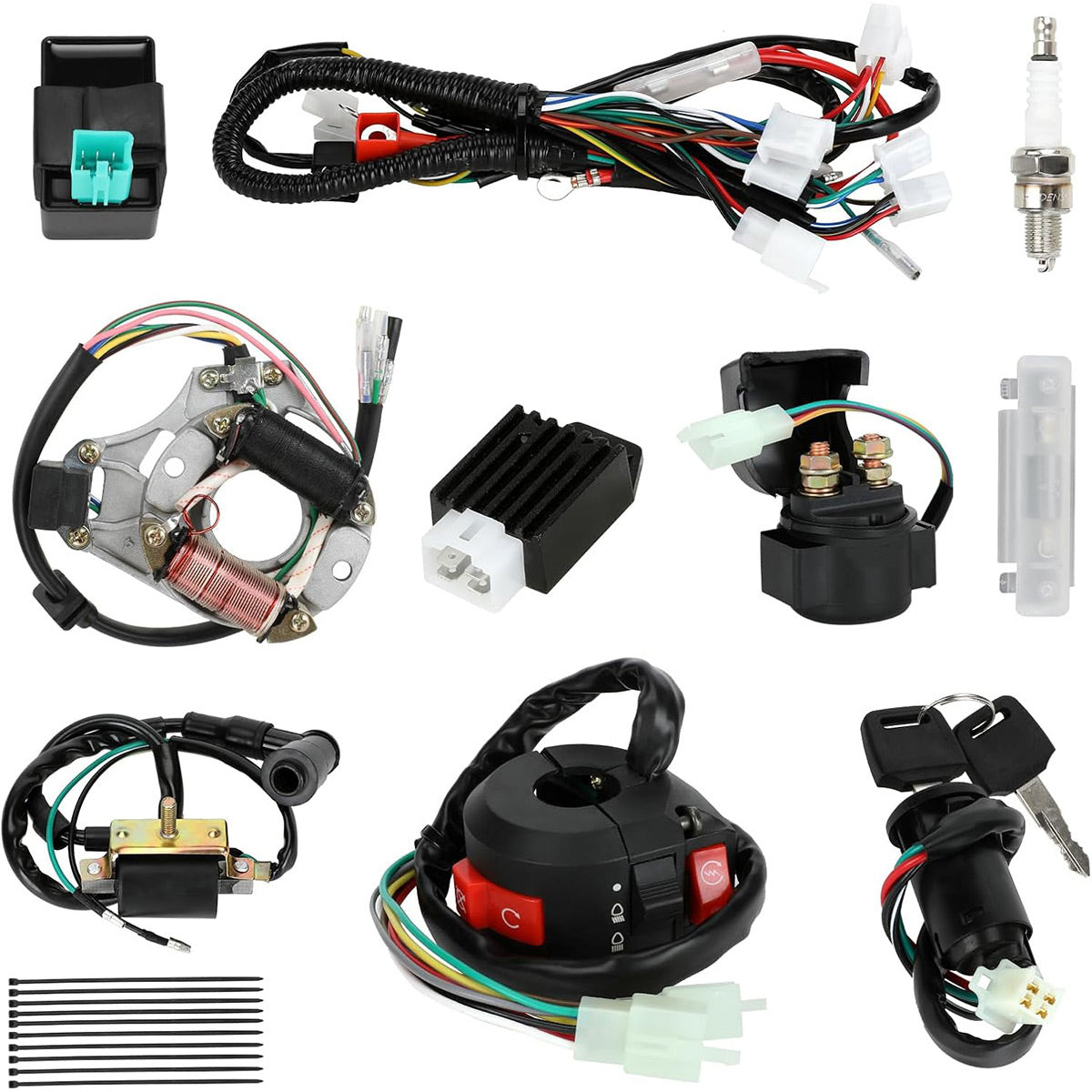

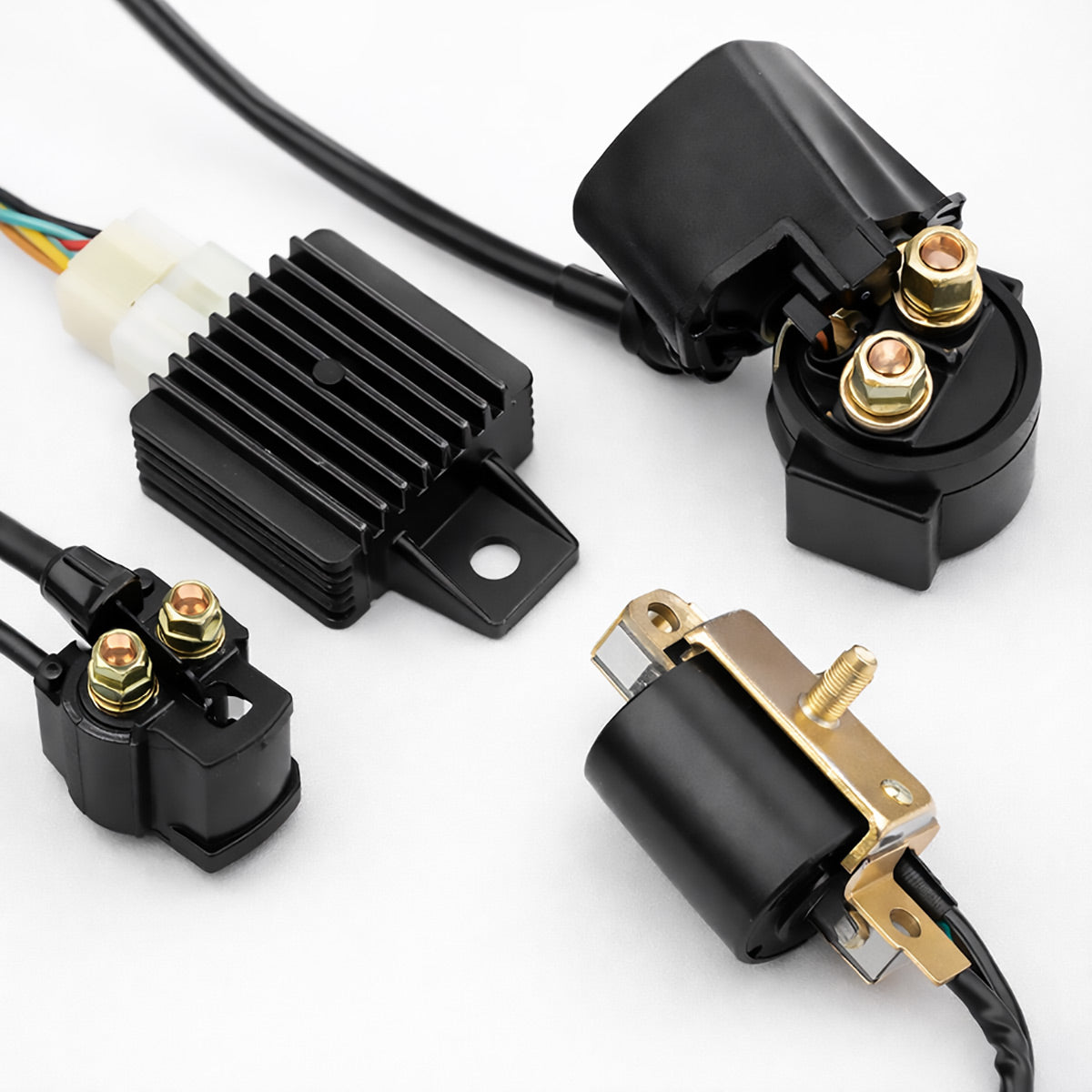

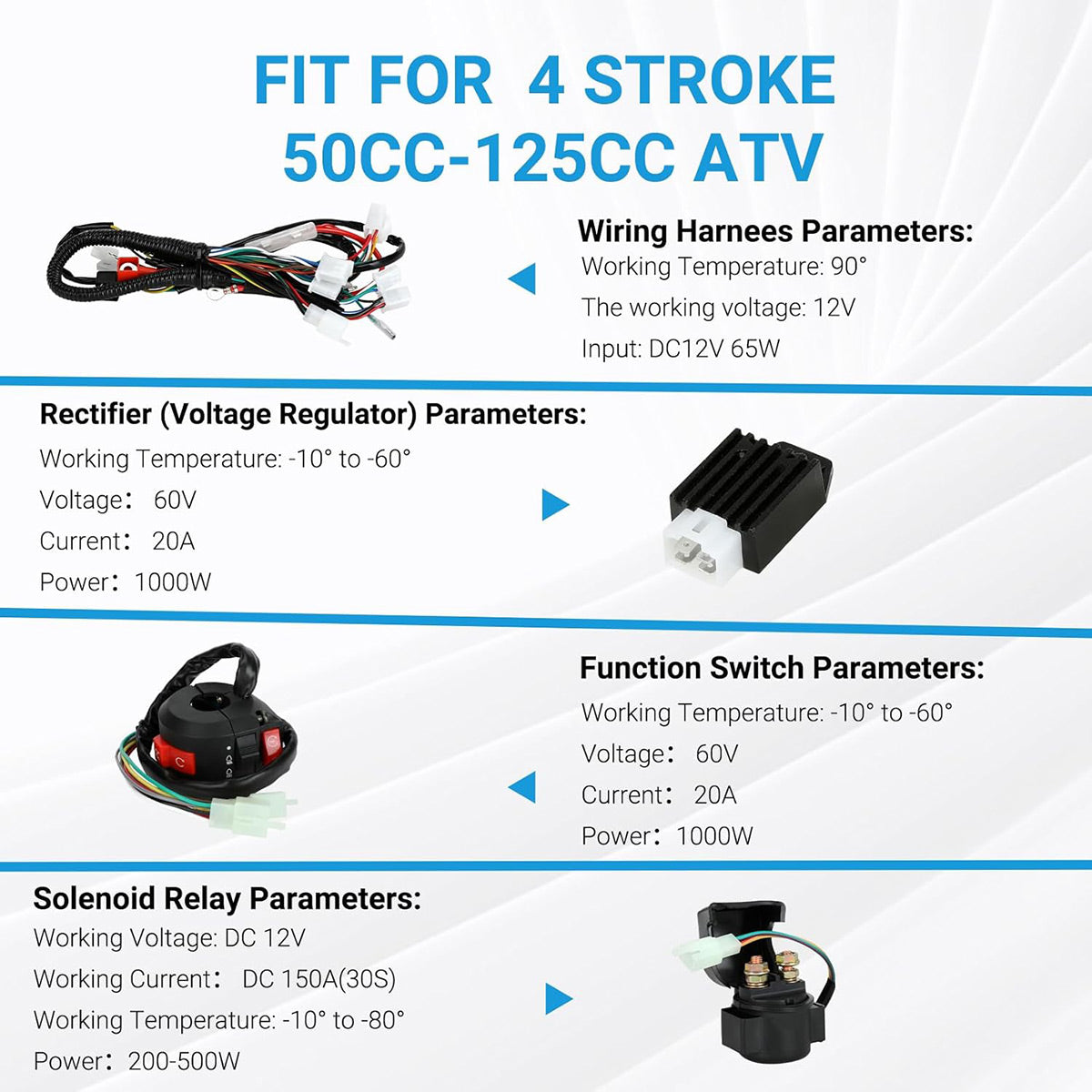

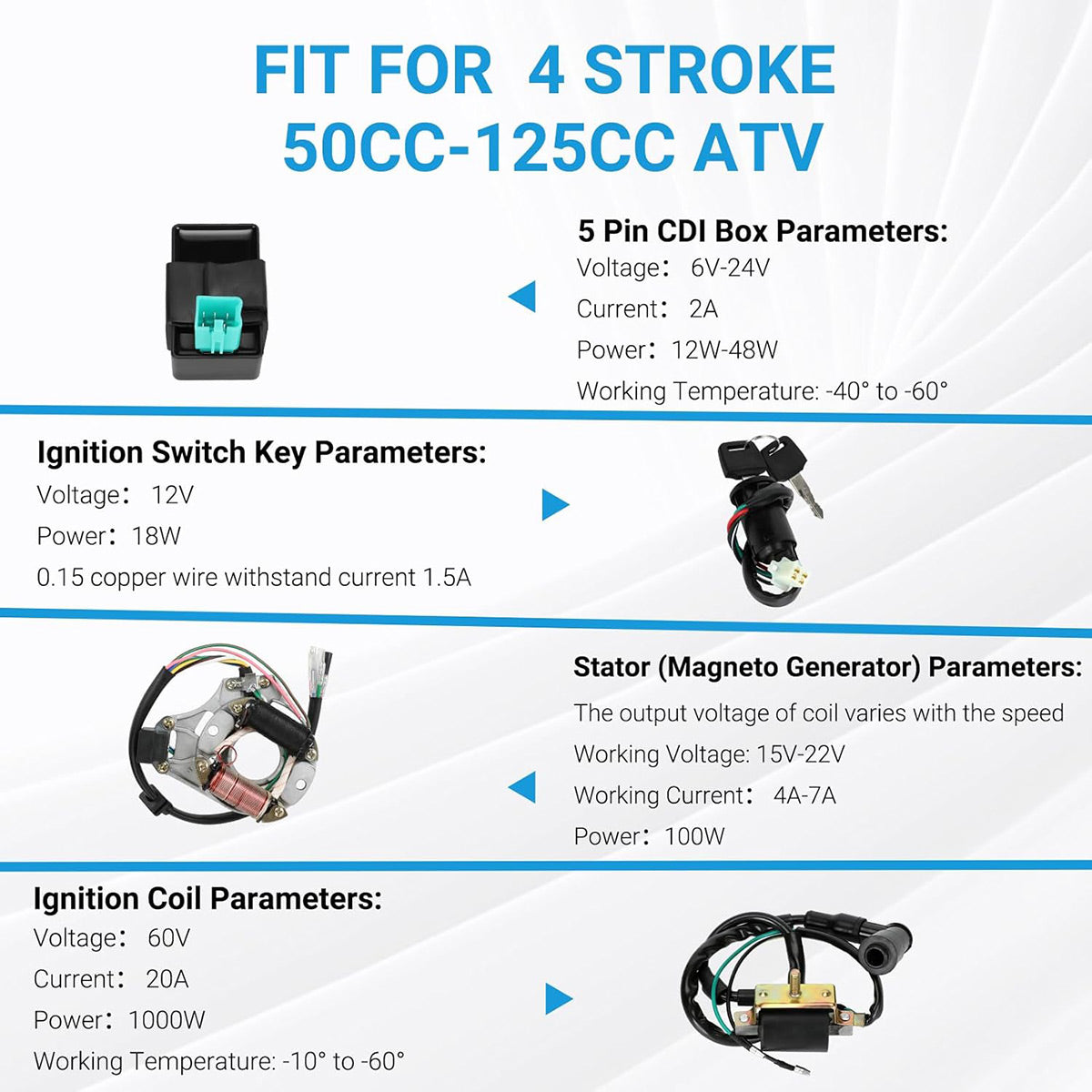

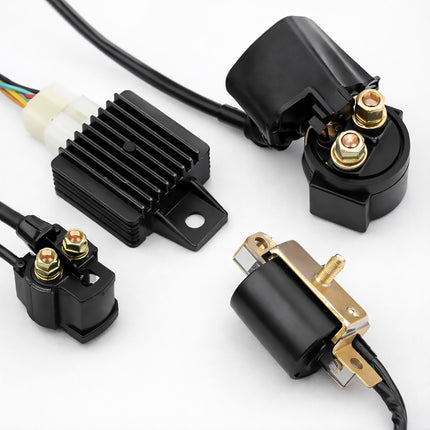

  • Includes CDI unit, rectifier, ignition coil, stator, solenoid relay, switch assembly and fuse
  • 5-pin AC CDI configuration
  • Colour-coded wiring for simplified installation
  • Copper terminals with insulated protective sheathing
  • Designed for replacement of existing ignition wiring systems
  • Weather-resistant construction for general off-road use

Specifications

  • Application: 50–110cc 4-stroke ATV / dirt bike / dune buggy
  • Engine Type: Non-GY6 only
  • CDI Type: 5-pin AC CDI
  • Electrical System: Designed for standard small-engine 12V systems (component dependent)

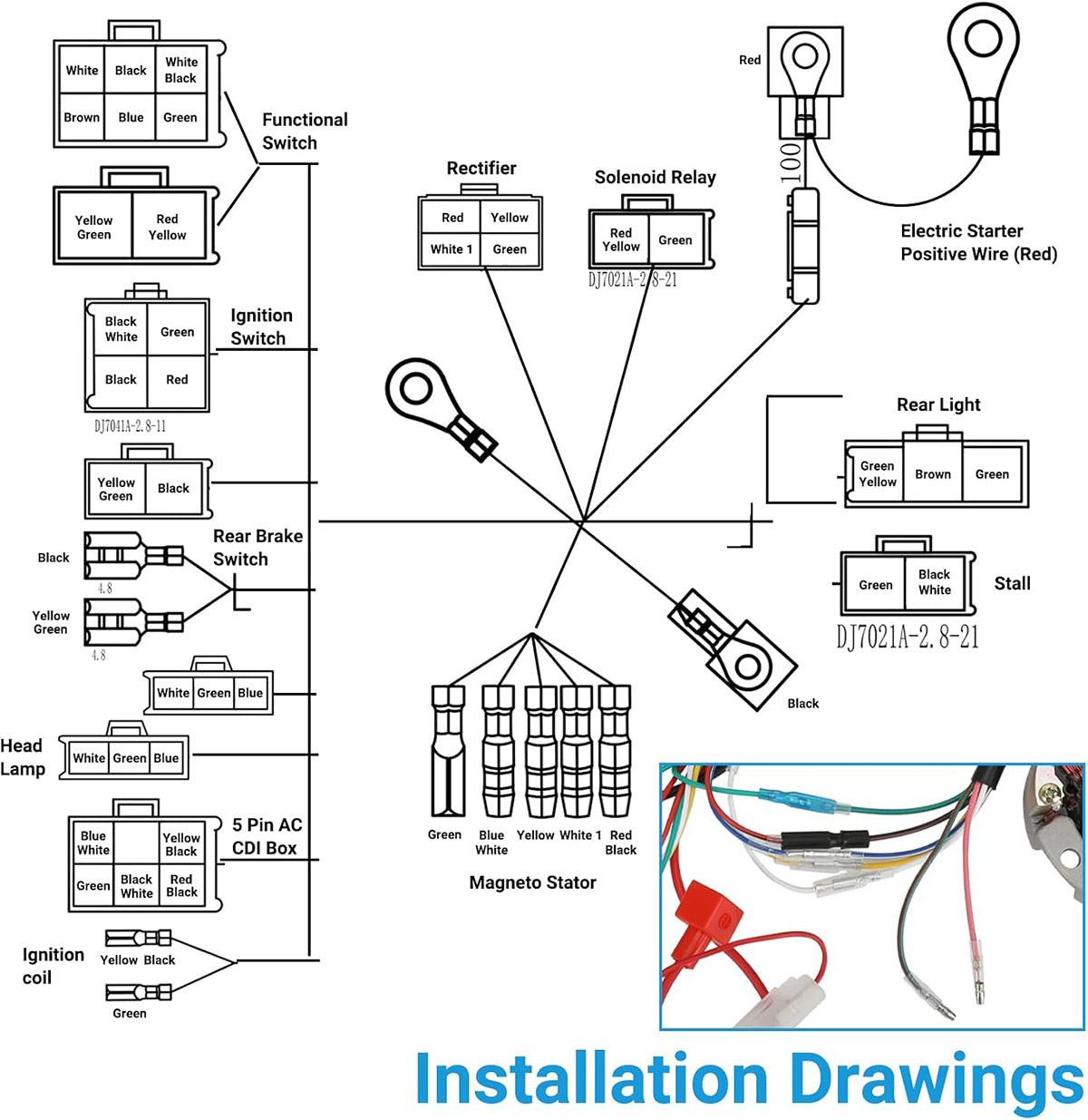

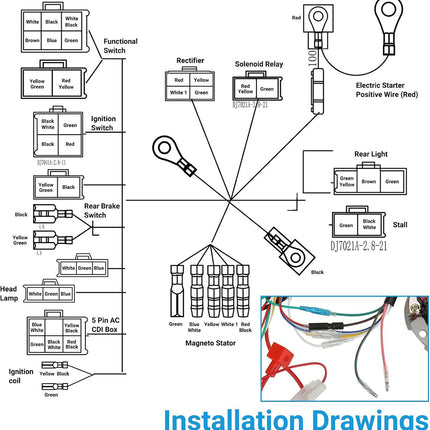

  • Wire Colours:
    • Red (+)
    • Black (–)
    • Green / Yellow / Blue / White (signal lines)
  • Operating Temperature Range: Approx. –40°C to 80°C (varies by component)

Package Includes

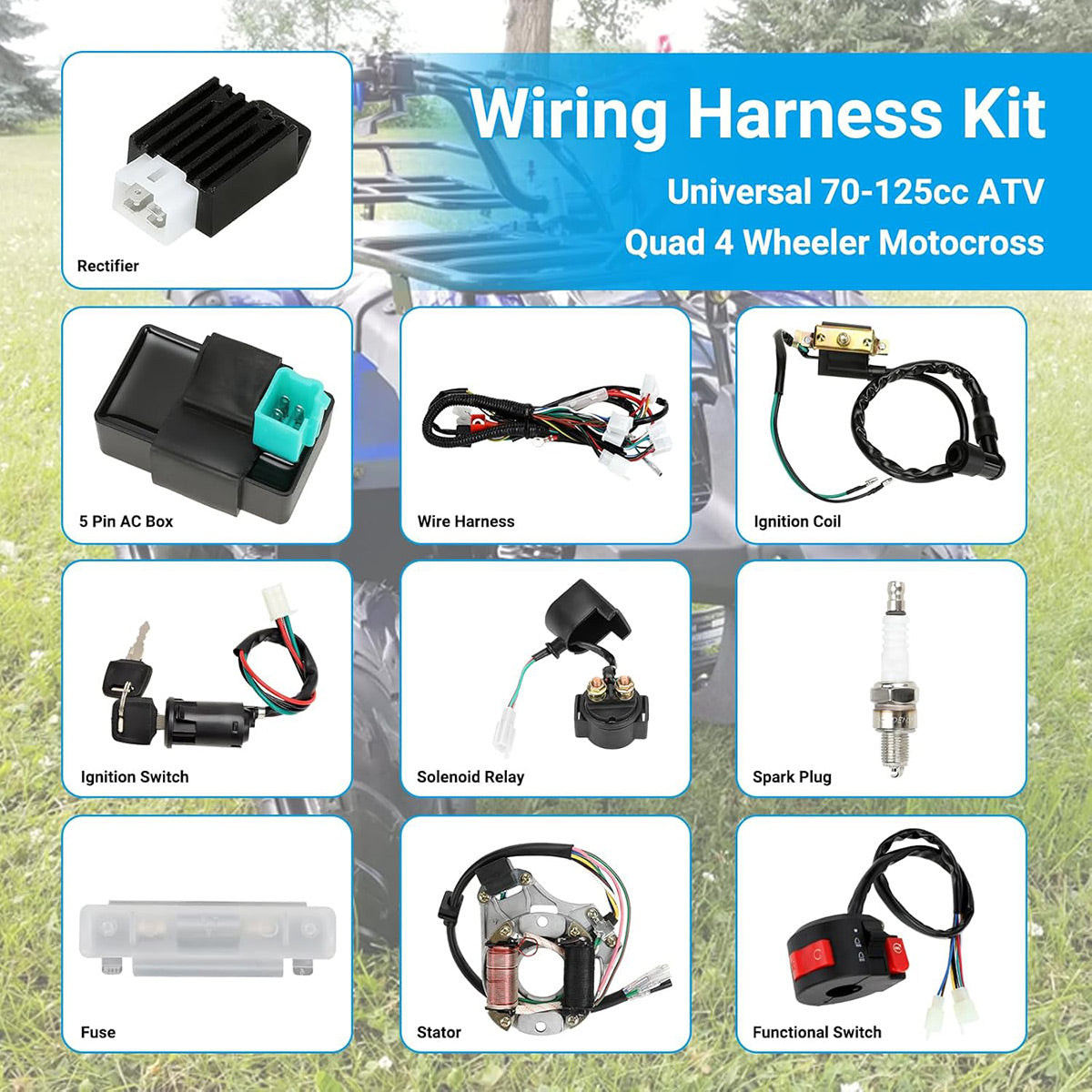

1 × Full vehicle wire ignition harness with all shown components

Note

  • Not compatible with GY6 engines.
  • Please confirm engine type and connector configuration before purchase.
  • Professional installation is recommended.

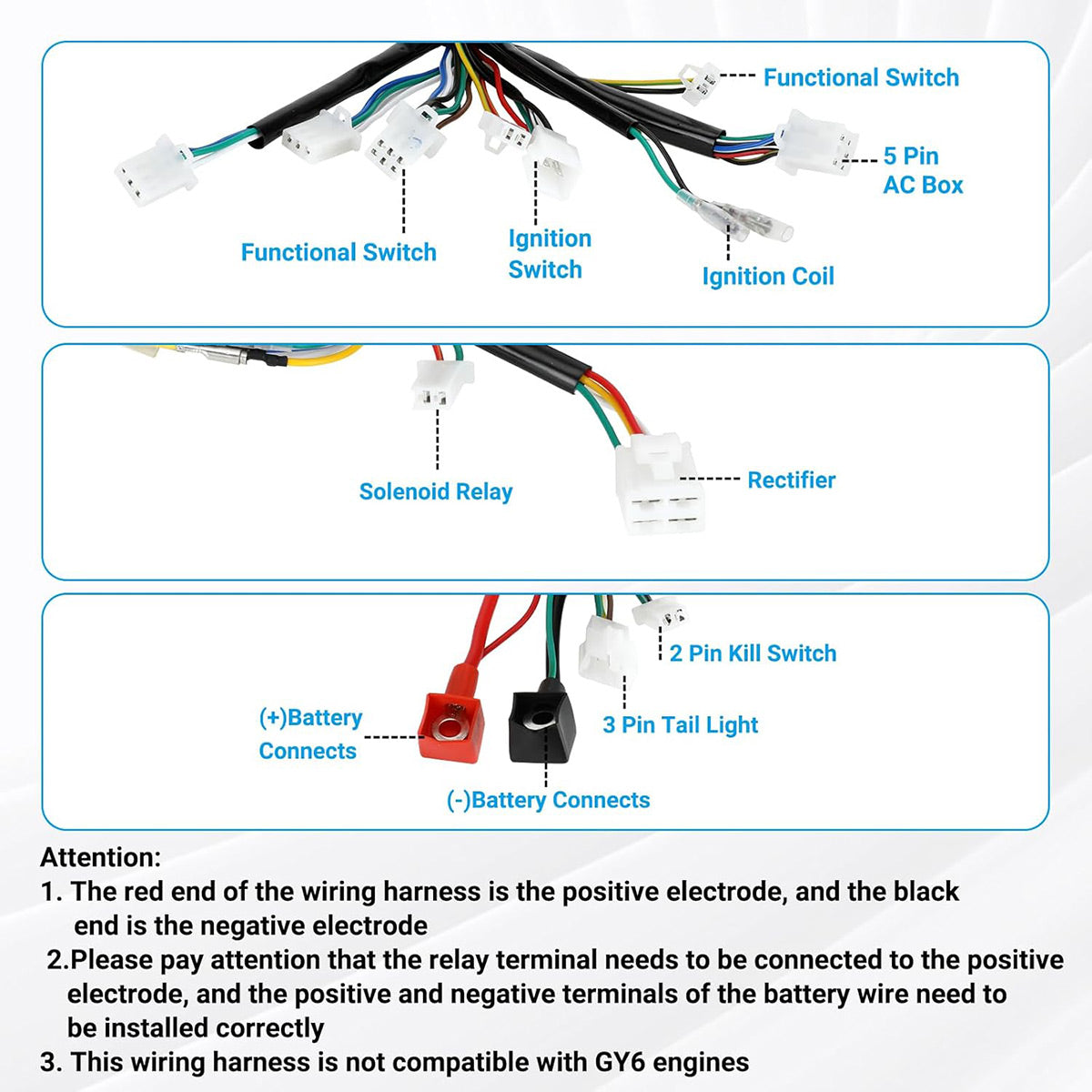

  • Ensure correct battery polarity during installation.
  • Relay terminal must connect to the positive battery terminal.
  • Colour may vary slightly due to lighting and display settings.
